Sinn watches feature a number of cutting edge technologies, many of which are unique to Sinn. Please note that not all Sinn watches, including the watch on this page, use all of these Sinn technologies.
Among the more notable Sinn technologies are:
Tegimented Hardened CasesMany Sinn watches are fitted with Tegimented cases produced in-house by Sinn's case making affiliated company in Glashutte, Germany.
Standard steel used by most watch companies has a hardness of between 200 and 240 HV (Hardness Vickers is a common scale used to measure material hardness). The Tegiment process produces a hardness of at least 1,200 Vickers which is five times harder than standard steel (and on some Sinn models up to nine times harder than standard steel).
The Tegiment process is not a coating consisting of a foreign material; instead the steel itself that has been hardened using a special engineering process that creates a hardened barrier. The base material is a type of stainless steel also used for surgical implants, and the stainless steel resistance to corrosion is further improved by the Tegiment hardening process.
The primary advantages to a Tegimented case are extreme resistance to scratches and other case abrasions, as well as increased resistance to corrosion.
Please note that certain Sinn watches are fully Tegimented (case, bezel) while others are Tegimented only on the bezel. Use the links below to view both categories.
- View Sinn watches with fully Tegimented cases.
- View Sinn watches with Tegimented bezels only.
Dehumidification TechnologyA number of Sinn models feature cases filled with inert gas. Sinn has found that filling the case with inert gas can help prevent the introduction of moisture and humidity to the case, as well as provide a more stable environment for the oils that lubricate the movement.
The proper care of any mechanical watch movement mandates that these oils maintain both their viscosity and lubrication properties.
- View Sinn watches with dehumidification technology.
Copper Sulphate CapsulesA number Sinn models use one or more copper sulphate capsules to absorb humidity trapped inside the case. Over time these capsules will gradually turn dark blue indicating that humidity has been absorbed.
The primary benefit to these copper sulphate capsules is a more dry and stable environment for both the movement and the lubricating oils. Together with Sinn's inert gas treatment these capsules form the basis of Sinn's Dry Hold Technology.
This technology not only provides a more stable environment for the movement, but also prevents fogging of the crystal when going from hot to cold environments or from humid to non-humid conditions (such air conditioned buildings).
- View Sinn watches with copper sulphate capsules.
Extreme Antimagnetic ProtectionMagnetism can cause dramatic swings in the timekeeping of a mechanical watch movement. People are often exposed to magnetic fields without even being aware - frequent high altitude flying, metal detectors, audio and video equipment, medical equipment and computer equipment can all cause problems with magnetism.
Many Sinn watches offer extreme protection against magnetism up to 80,000 A/m. Sinn achieves these results using a number of different technologies, including special case and case back construction, soft iron components in the case and protective rings surrounding the movement.
- View Sinn watches with extreme antimagnetic protection.
DIAPAL Oil Free EscapementSinn caused quite a stir when they first released their DIAPAL technology. Beginning in 1995, Sinn began work to create an oil free escapement. With any mechanical watch movement, the aging of oil, especially in the escapement can create long term problems for that movement. Additionally, as movement oil ages, required service intervals become more frequent.
Sinn's early analysis to this problem provided a quick solution (at least in theory) - if you don't use oil, it can't age. The process began by exchanging the ruby escapements for diamonds (the word "DIAPAL" derives from the German name for diamond escapements) in order to achieve the desired effect. The designation stuck, even though today Sinn works with solutions taken from advanced nanotechnology rather than diamonds.
The result is a movement that proves so reliable that Sinn offers an unprecedented five year warranty on their DIAPAL watches.
- View Sinn watches featuring the DIAPAL oil free escapement.
Hydro Oil Filled TechnologySinn has developed a technology termed "Hydro" in which the entire watch case is filled with oil. Watches using this technology are based on quartz rather than mechanical movements.
By using this type of movement, Sinn is able to fill the watch with oil, which has the joint affect of greatly enhancing the readability of the dial and time from any angle (including under water), and increasing the water resistance of the watch even at great depths.
- View Sinn watches with Hydro Oil Filled technology.

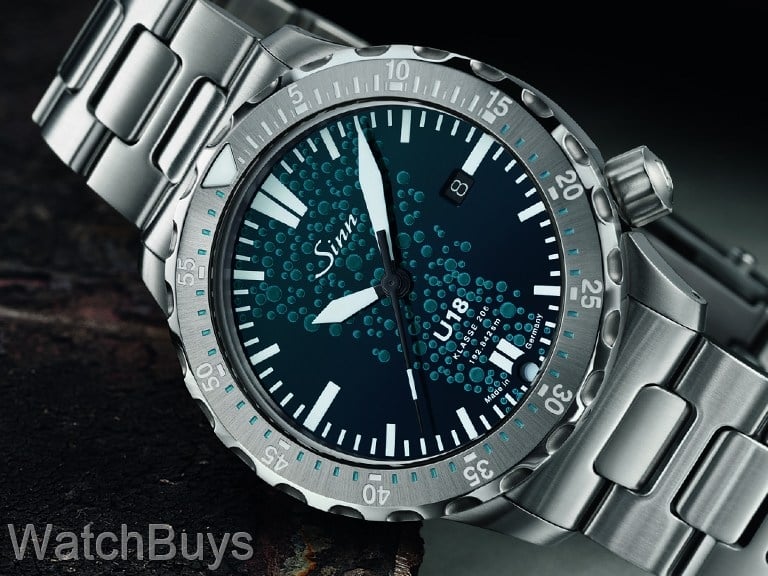

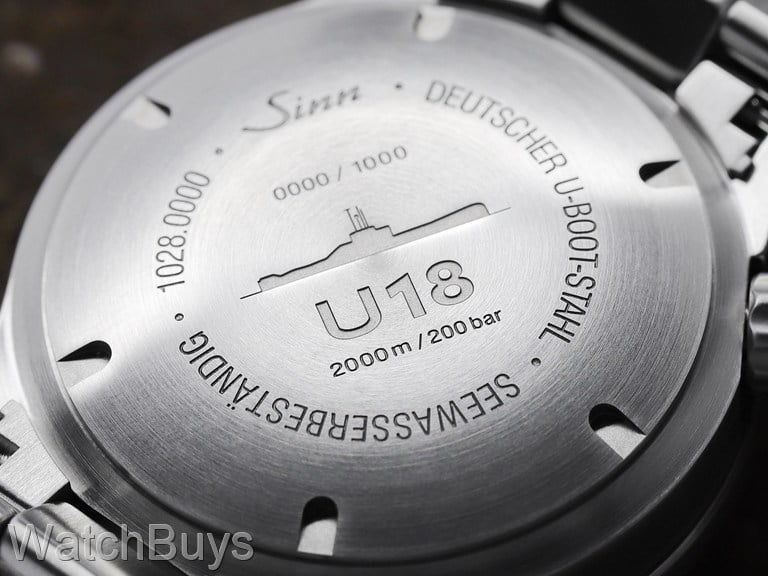

Submarine SteelSinn has created a line of watches featuring cases made from German submarine steel (the U Series). The steel was procured by Sinn from a steel supplier to Emden GmbH, one of Germany's North Sea shipbuilding yards who construct submarines from the very same steel.
Because of the special steel used from the submarine steelmanufacturer, the case resists the effects of exposure to salt waterand salt water environments.
These cases are produced in-house by Sinn's case making affiliated company in Glashutte, Germany.
This special steel is also amagnetic which means that is does not have magnetic properties and cannot itself become magnetized. The watch movement itself is protected from magnetic fields up to 4,800 A/m.
- View Sinn watches built from German submarine steel.
EZM Mission TimersSinn is a partner for manufacturing watches for the German Special Forces, including SWAT, Customs, FBI, helicopter police, GSG9 and other units.
Beginning with the now highly collectible (and valuable) Sinn EZM 1, Sinn has grown this collection to some of the most durable and highly functional watches made and they remain among the most popular in the collection.
- View Sinn watches in the EZM Series.
